Features:

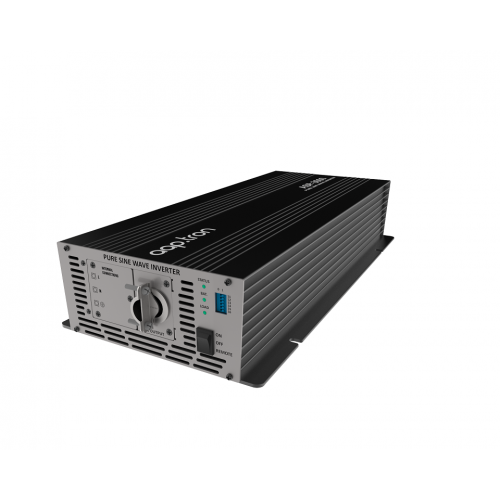

Pure Sine Wave Inverter_ASP-3000
The unit is a highly reliable DC-AC inverter system, designed with advanced power electronic and microprocessor technology offering the following features:
• Pure sine wave output (THD < 2.5%) to operate
• Intelligent software for power management
• Loading and temperature controlled cooling fan
• Remote management and control
• Turbo Mode Continuous 120% O/P Power
• RS-232 communication
• Dry contact terminal
• Efficiency Max. 94%
• ECO Mode stand by < 1W
• Advanced Protection Features
- Input over/under voltage protection
- Internal over temperature protection
- Input reverse polarity protection (AUTO - RECOVERY)
- Output overload protection
ASP selling point
Designed for a variety of mobile applications such as commercial, emergency, recreational vehicles / marine vessels and off-grid PV system.
ASP-selling point
| 1) THD < 2.5% @resistive load) |
| 2) Input reverse polarity protection (Auto- recovery) |
| 3) Turbo mode continuous power |
| 4) Frequency accuracy : +/-0.03% |
| 5) Efficiency >90% |
| 6) standby mode <1W @ECO Mode |
| 7) Surge power in 3 seconds |

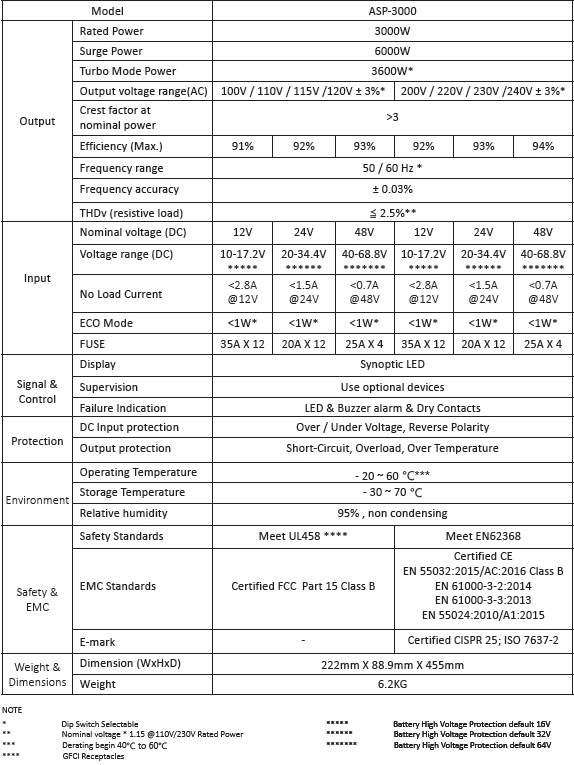

Specification
*The specification is subject to change without prior notice
